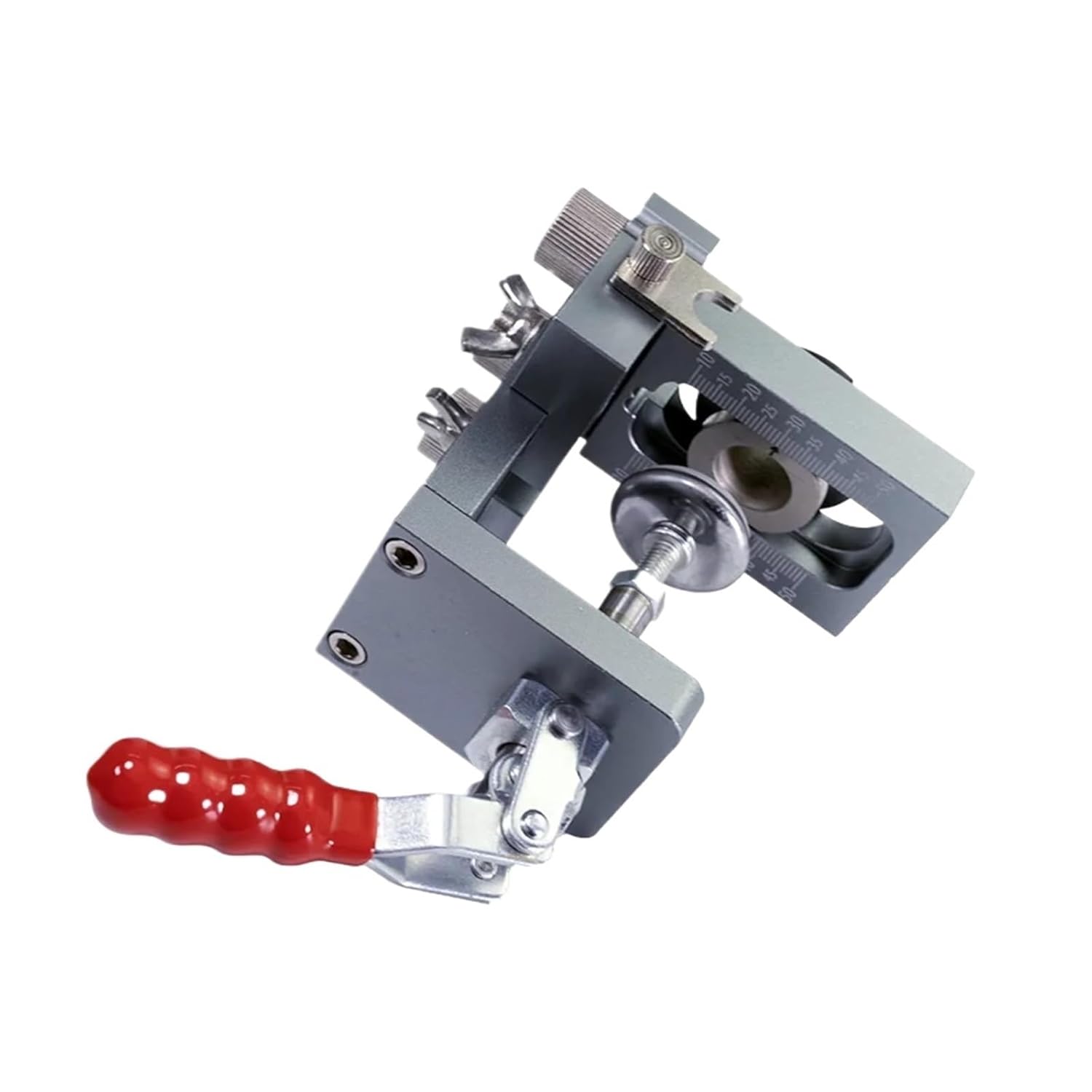

Hole Saw Kit Multifunctional Woodworking 3 in 1 Doweling Jig Kit Drilling Guide Locator for Furniture Connecting Wood Hole Puncher Tool Professional(Simple kit)

Only Super Kit packed with below plastic toolbox:The difference between the three models-Quick Clamp 3 in 1 Woodworking Dowelling JigModelSimple kitDeluxe kitSuper kitBody Material6061 Aluminum alloyMax. thickness10-30mmSide hole stroke19-45mmSlider stroke5-30mmDrillNo drill5,8,10,15mm each 1pc5,8,10,15mm each 1pcDrill sleeve3pc 8mm,1pc 10mm3pc 8mm,1pc 5mm and 10mm5pc 8mm,1pc 5mm and 10mmAllen wrenchNO2pc2pcAuxiliary boardNO1pcPackagingcarton boxplastic toolboxPacking size22*13*9cm211*18*6cmPacking weight0.72kg0.92kg1.32kgHow to calculate fixed position of the drill?Please see the description below:15mm drill :Locator thickness(23mm) + half the thickness of the plate(10mm) +Eccentric bottom thickness(5mm)=38mm8mm drill:Locator Thickness(26mm) + 3/4 Dowel Length(30mm)=56mm10mm drill:Locator Thickness(26mm) + Particle Thickness(11mm)=37mmOperational Demo1. Measure2.set the position of the drill bit3. Three-in-one L-shaped splicel drilling(a) Align one end of the tool with the edge of board A, adjust the quick clamp to clamp the plate directly (picture 7), and start drilling,dowel holes and eccentric wheel hole done. Multiple groups of holes can be continuously punched on the A board (picture 8).(b) Install the clamping plate of the tool on the eccentric hole punching plate, then fix the tool on the B plate, punch the rubber particle hole and dowel hole. When the two sides of the board are not well aligned, insert the 8mm round wood dowel into the middle hole of the A board, align the two ends of the A board and the B board, the wood dowels aligned with the 8mm slot, finish punching.4. Three-in-one T-shaped splicel drillingThe opening of the T-type plate A is the same as that of the L-shaped panel. When punch the B board, the clamping plate and the eccentri wheel plate, draw a straight line at the position where the hole needs to be punched on the B board, Align the punch positioning line of the slider with the drawn straight line, put down the side baffle of the slider, close to the edge of the board ,fixed and start drilling, or use the A board to install the wooden dowel and position it (picture 11).Install the T-shaped board (picture 12).(c) Install the L-shaped board.Material : MetalType : Combination,Drills,Screwdrivers,WrenchesApplication : Wood Working ToolModel Number : MD560Size : 21*18*6cmDIY : WoodworkingPackage : BOXWelcome! Our store has a wide variety of products with reliable quality. l hope to bringyou a pleasant shopping experience. lf you have any questions, please feel free to conta me!

• 1. This drill bit features a precision geometric cutting edge design and optimized chip evacuation flutes, ensuring rapid penetration and minimal resistance when drilling holes in various types of wood. It effortlessly produces smooth-edged, dimensionally accurate holes, effectively enhancing your woodworking efficiency and finished product quality.
• 2. Crafted from steel and reinforced through heat treatment, the drill body boasts exceptional hardness. It maintains a sharp cutting edge even with frequent use, extending tool life and making it a reliable long-term partner.
• 3. Compatible with handheld drills, bench drills, and other power tools, it meets drilling needs for solid wood, plywood, MDF, and other common wood materials. Whether for professional woodcraft, furniture assembly/repair, or home DIY projects, it serves as your capable assistant.
• 4. The uniquely designed spiral flute efficiently and smoothly evacuates wood chips generated during drilling, effectively Avoid clogging. This ensures consistent drilling speed while maintaining a cleaner workspace, minimizing the hassle of mid-job cleanup.
• 5. No complex setup is required after unboxing—simply mount it in a standard drill chuck. Clear specification markings enable quick and accurate model selection. Whether you're an experienced professional or a beginner enthusiast, you can get started effortlessly and begin your creative projects immediately.
